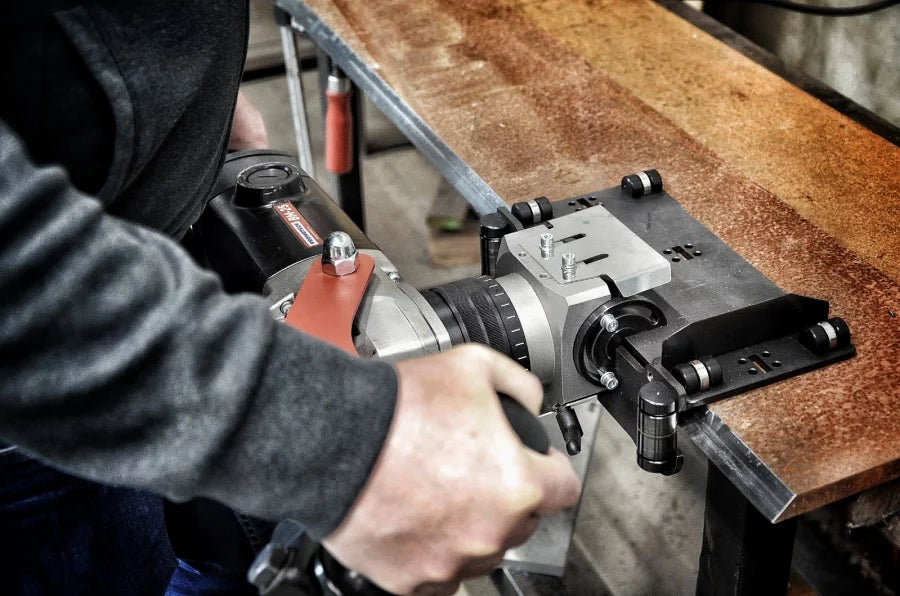

PLATE BEVELLING MACHINE

BM-25

PLATE BEVELING MACHINE

The BM-25 is an easy-to-use, portable heavy-duty machine designed for beveling steel plates prior to welding.
The beveller needs no track to move along steel plate to produce accurate high-quality double-side bevels without thermal distortion or creation of heat affected zone on plate thickness range 8-60 mm. The ABM-30 features an infinitely adjustable bevel angle between – 70 and + 70 degrees and is capable of producing bevels up to 30 mm wide. It also allows for facing in both directions, with the milling head depth of 1 mm.

• needs no track to travel in both directions with feed speed up to 2 m/min
• 4 wheels feed drive eliminates the hard physical work of the operator
• produces double-side bevels without having to flip the plate, enhancing safety and reducing material handling time and expense
• edge to Edge working range
• semi-automatic feed stop at the end of the metal sheet
• includes milling head and cutters included

• Specification

  Voltage	1~ 220-240 V, 50-60 Hz
  Power	2200 W
  Spindle speed (without load)	1800-5850 rpm
  Maximum bevel width (b, Fig. 1)	25 mm (1")
  Maximum depth of cut (d, Fig. 1)	12,5 mm (1/2")
  Bevel angle	0°-90° 15°-75° (recommended)
  Minimum workpiece thickness	2 mm (0.08”)
  Weight	12,5 kg (27 lb)
  Required ambient temperature	0–40°C (34–104°F)
