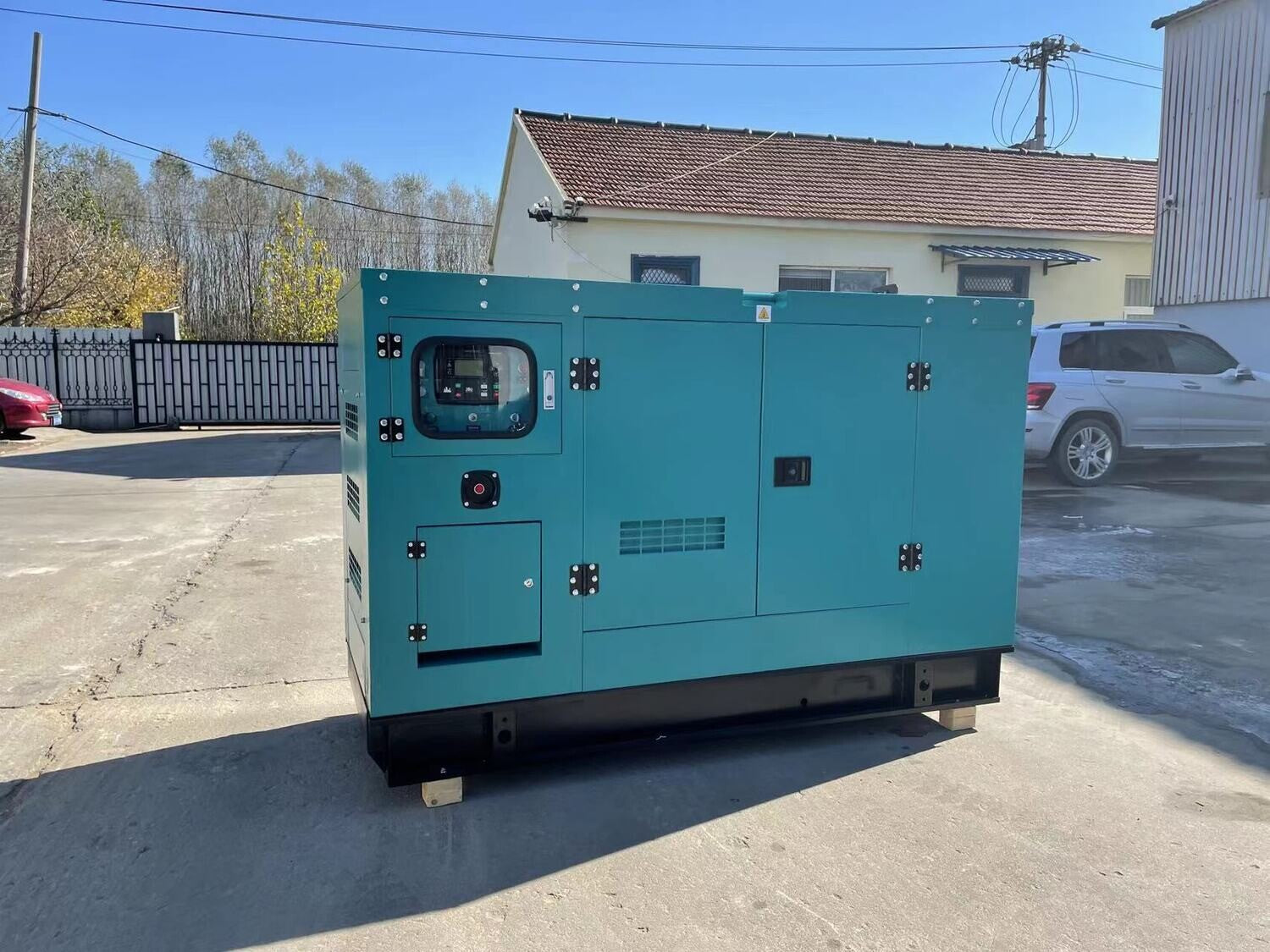

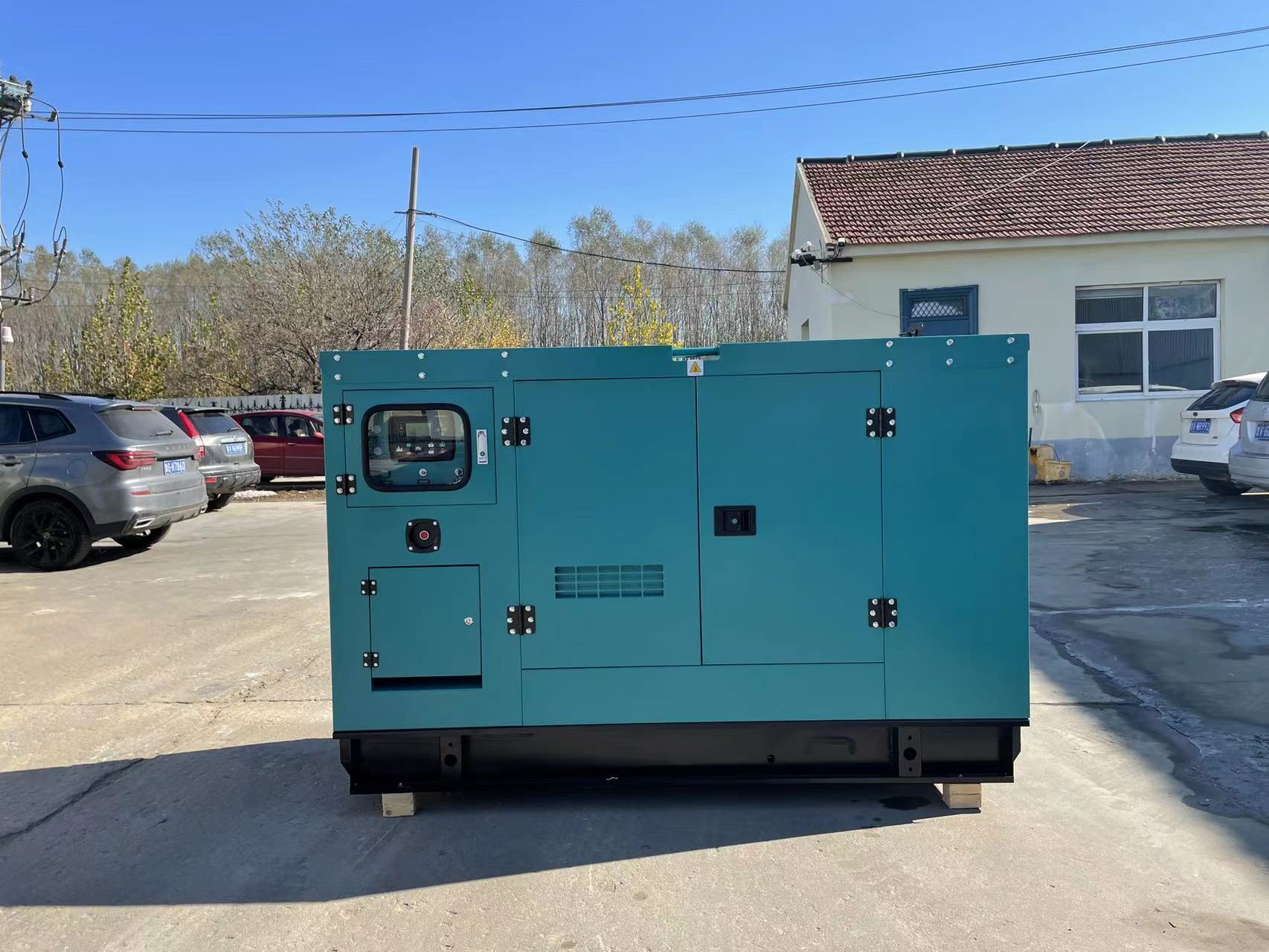

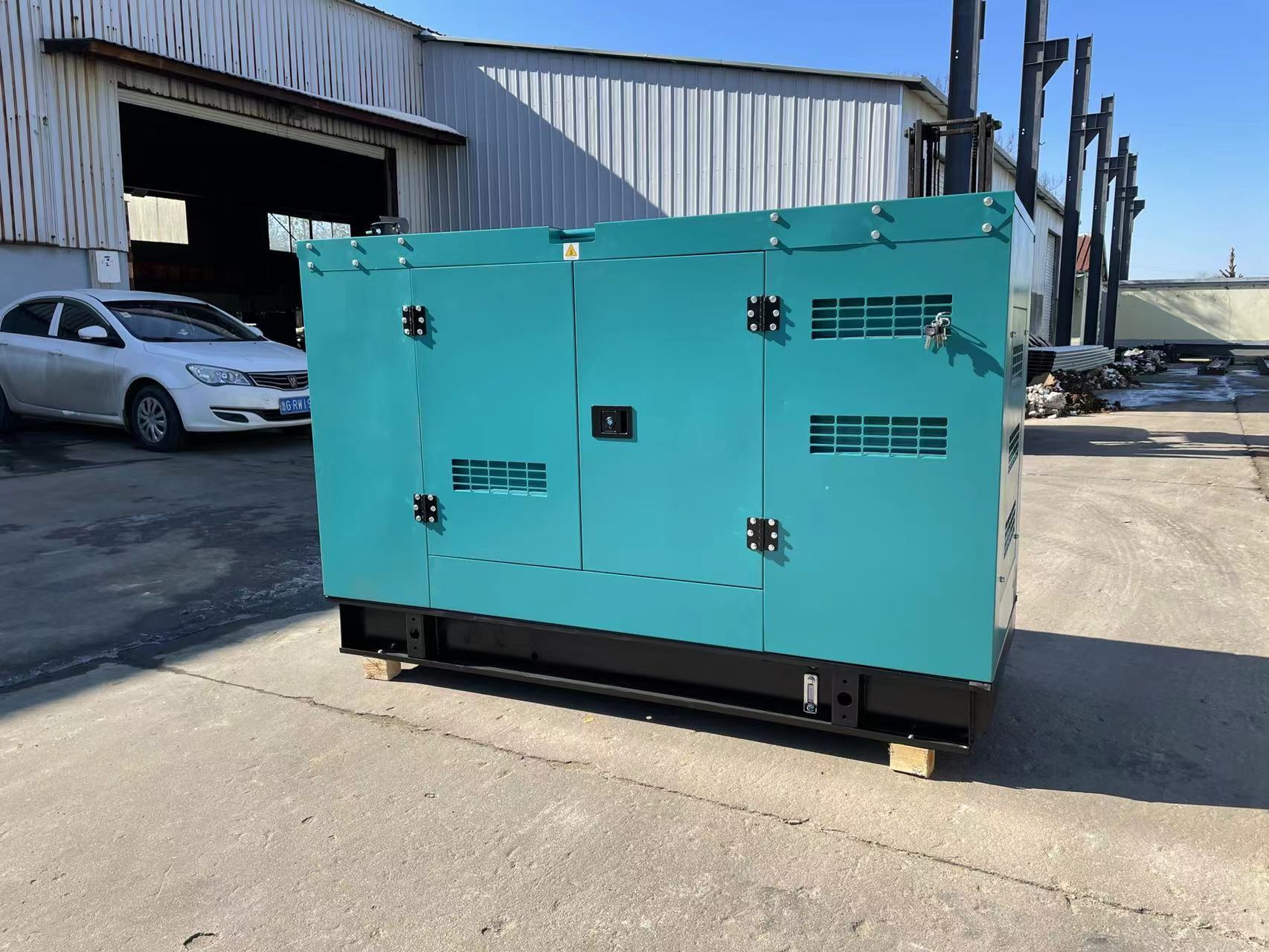

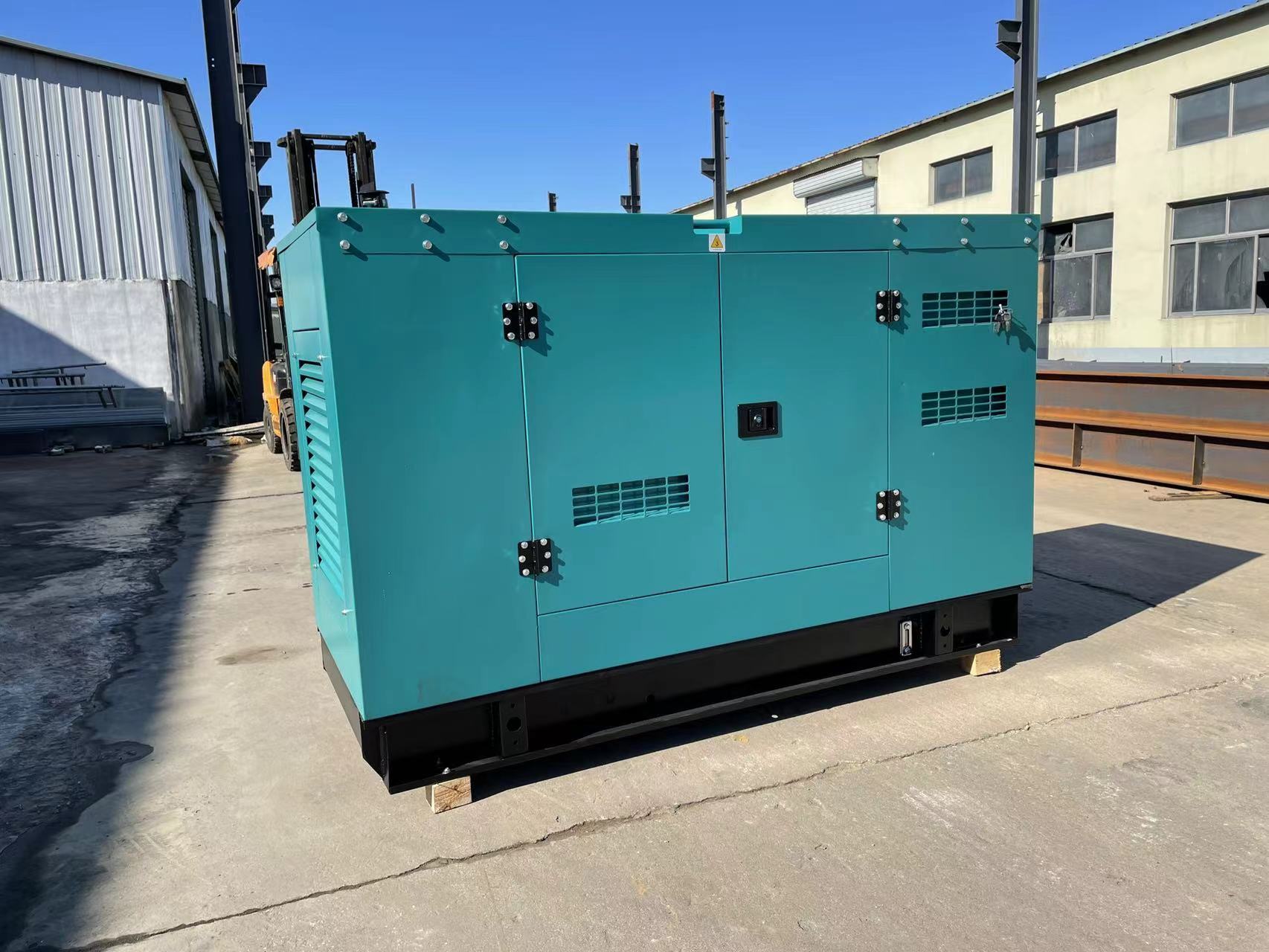

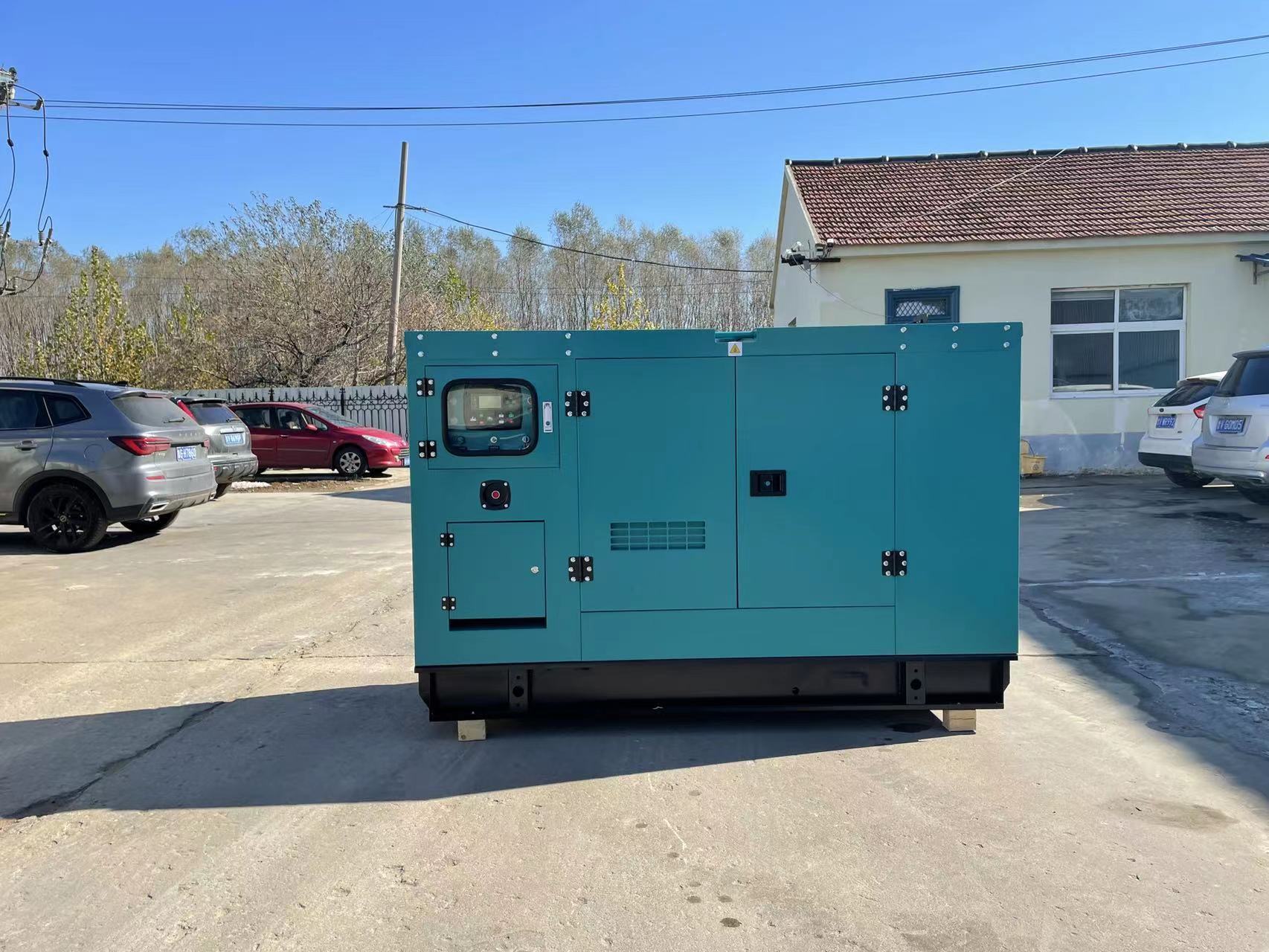

30Kva/24Kw Diesel Silent Generator (4 Cylinder/4 Stroke/Water-cooled) With Built In ATS-3-Phase
30Kva/24Kw Diesel Silent Generator (4 Cylinder/4 Stroke/Water-cooled) With Built In ATS-3-Phase
Regular price
R 194,923.85
Regular price
Sale price
R 194,923.85
Unit price
per
Tax included.
Couldn't load pickup availability
GENERATOR
| Model | KKWF30GF |
| Frequency | 50Hz |
| Power | 24KW/30KVA |
| Voltage | 380V |
| Phase | 3 phase |
| Power factor cos? | 0.8 |
ENGINE
| Model | Weifang Ricardo HZ4MD |
| Type | 4 Cylinder, 4-stroke?water-cooled |
| Rated output | 28kw |
| Bore×stroke | 100*115mm |
| Displacement | 3.61L |
| Compression ratio | 19:1 |
| Engine speed | 1500rpm |
| Fuel tank capacity | 120L |
| Fuel consumption rate | ?258g/kw.h |
| Lube oil capacity | 14L |
| Lubrication oil | CD grade or higher?SAE10W/30?SAE15W/40? |
| Fuel oil | diesel fuel |
ALTERNATOR
| Continuous Output | 24kw |
| Power Efficiency | 0.8 |
| Excitation Type | Brush |
| Insulation Class | H |
UNIT
| Product dimensions | 2100*940*1270mm |
| Weight | 930kg |
| Noise level at 7m dB(A) | 75~77 |
