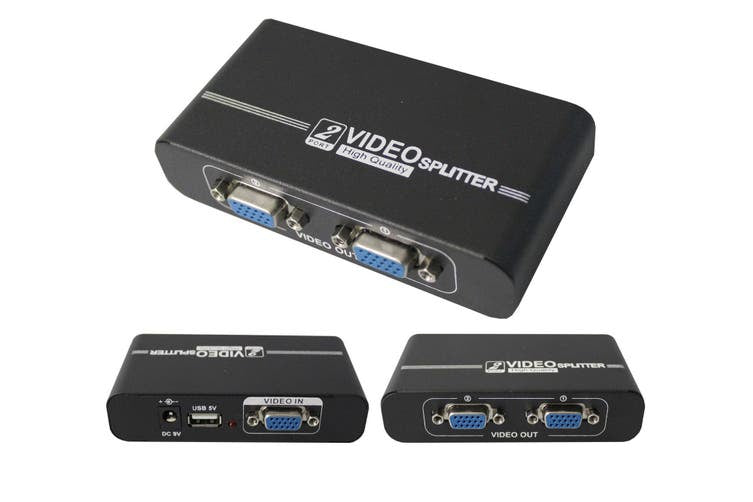

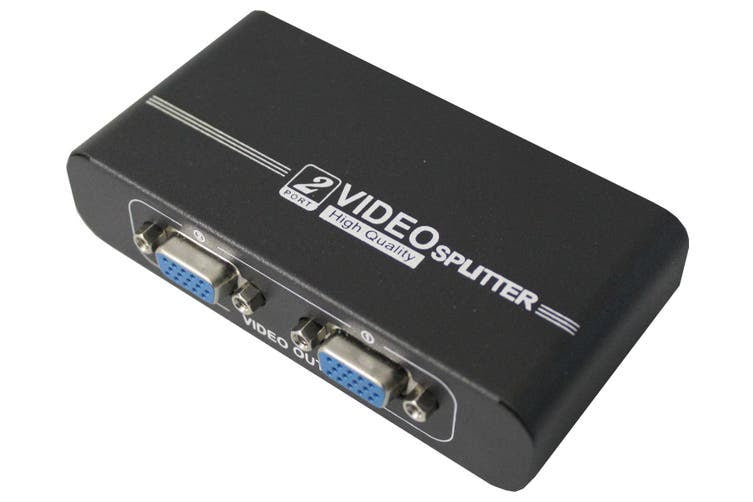

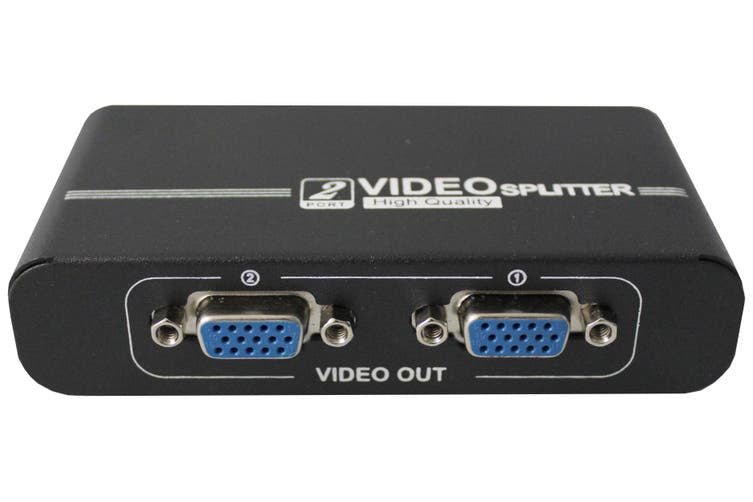

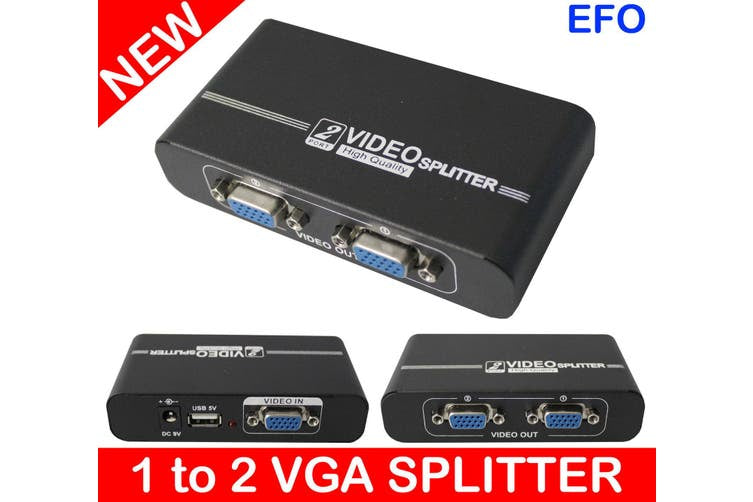

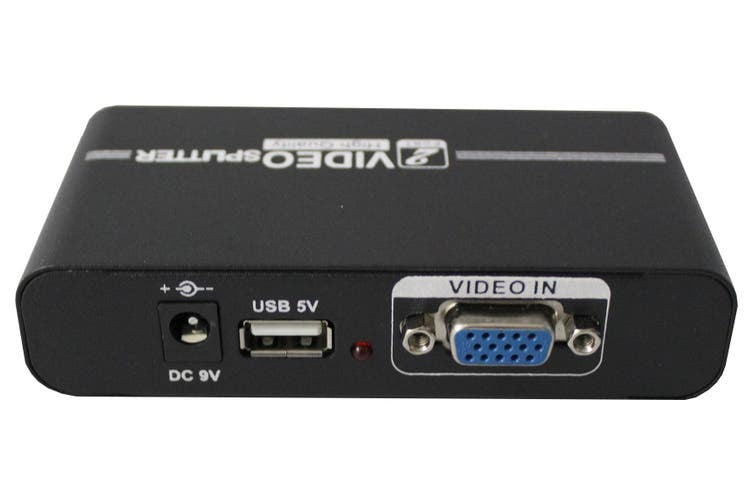

1 To 2 Port Vga Splitter High Resolution Support 1920 X 1440 550Mhz Video 102A
1 To 2 Port Vga Splitter High Resolution Support 1920 X 1440 550Mhz Video 102A
Regular price
R 399.00
Regular price
Sale price
R 399.00
Unit price
per
Tax included.
Couldn't load pickup availability
|
General
|
||
| Input Conenctor | 1x VGA (HDB β 15 Female) | |
| Output Connectors | 2x VGA (HDB β 15 Female) | |
| Bandwidth (-3db) | 350MHz | |
| Output Impedance / Level | RGB: 75Ξ©, 0.7V p-p; HV SYNC: TTL Level | |
| Resolution | 1920 Γ 1440 DDC, DDC2, DDC2B (at PNP Port) | |
| Horizontal | 30 ~ 180 KHz | |
| Vertical | 43 ~ 250 Hz | |
| Transfer Distance | 50m (max.) | |
| Power Consumption | AC Adaptor: DC 9-12V, <0.9W | |
| Operating Temperature | 5 ~ 40Β°C | |
| Operating Humidity | 0 ~ 80% RH | |
| LED Indicator | Yes | |
| Housing | Metal | |
| Dimensions (W x H x D) | 110mm x 56mm x 25mm | |
| Weight | 156g | |
| Package Contents | ||
| Contents | VGA Splitter, AC Adaptor, Manual |
